Features

1. Dual-core, dual-architecture processor: Unique dual-core, dual-architecture, 150MHz main frequency, strong performance.

2. Large-capacity storage: built-in 520KB SRAM and 2MB on-chip Flash to meet a variety of needs.

3. Flexible GPIO design: 15 multi-functional GPIO pins, strong scalability and flexible development.

4. Convenient interface design: Type-C interface, can be integrated by direct soldering, stamp hole design for embedded applications.

5. Low power consumption and rich peripherals: support for low-power mode, accelerated floating-point library and 12 programmable PIO state machines.

Specification

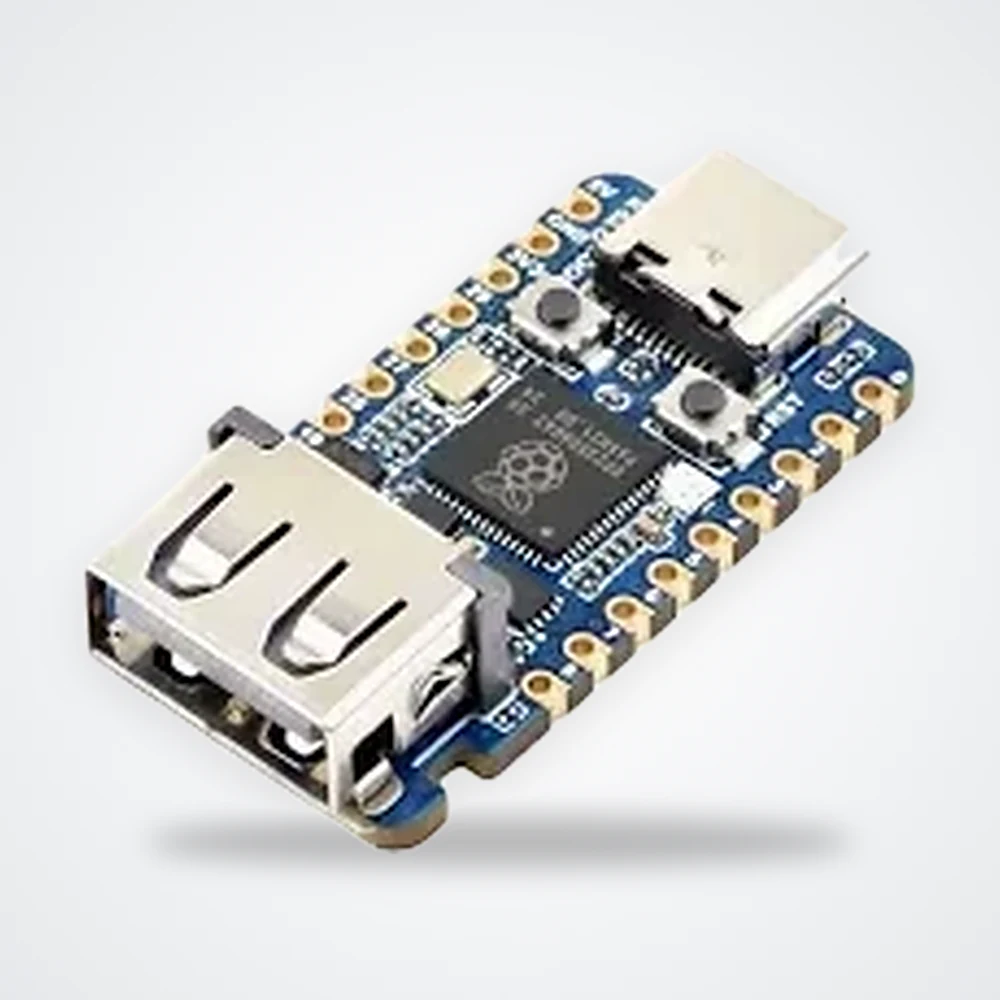

Adopts the official self-designed RP2350A microcontroller chip

Unique dual-core and dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, running at a clock frequency of up to 150MHz.

Built-in 520KB of SRAM and 2MB of on-chip Flash.

Type-C interface, keeping up with the trend, no need to worry about forward and reverse plugging.

Stamp hole design, can be directly soldered and integrated into the user's own design of the backplane

USB1.1 host and device support

1 USB expansion port on board, compatible with USB2.0/1.1 transmission

Supports low-power sleep and hibernation modes

Recognized as mass storage for drag-and-drop downloads via USB

15 GPIO pin-outs on the RP2350A

2 SPI, 2 I2C, 2 UART, 4 12-bit ADCs, and 14 controllable PWM channels

Precision on-chip clock and timer

Built-in temperature sensor

On-chip accelerated floating-point library

12 programmable I/O (PIO) state machines for custom peripheral support

Miniature size 33mm*17.5mm

Package Includes

1 x Development Board
